Product Description

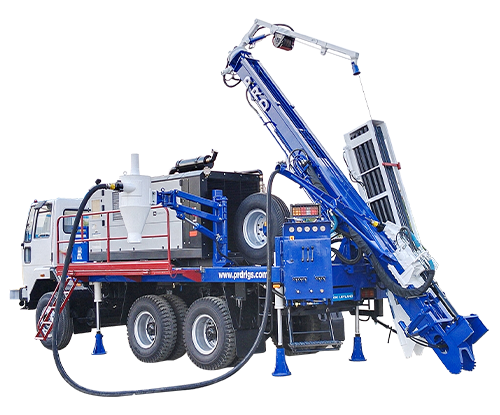

The PRD Air Core 100 is a robust and efficient sample recovery air core drilling rig with a pull-up force of 10,000 kg, capable of drilling 4-inch diameters up to 100 meters in depth. It is designed for surface exploration and offers a drilling angle range of 45 to 90 degrees. The rig is powered by a hydraulic system from the Truck Engine with PTO option. It features a sturdy platform structure made of welded steel. The mast is raised and lowered by a single hydraulic cylinder, and the feed system utilizes a double-acting hydraulic cylinder with a 1:2 rope reeving system. The rig is equipped with a rotary head, including essential attachments such as an RC head, cyclone, RC hose, and swivel. It also features a hydraulic-operated breakout wrench for fast breaking of rod joints. The rig includes a hydraulic tank with a capacity of 450 liters, and a centralized control panel. It offers mounting options of truck, crawler, and skid for versatile applications.
| Application | Surface exploration |
|---|---|
| Drilling Method | Air core |
| Flushing Medium | Air |
| Drilling Depth | 100 m |
| Hole Diameter | RC : 102 mm (4") |
| Rotary Head Type | Top drive rotary head |
| Rotary Head Travel | 3500 mm |
| Rod Break out method | Hydraulic operated break out |
| Sampling System | Standard cyclone |
| Engine - Model | Truck Engine with PTO |
| Hydraulic system | Hydraulic tank capacity:450liters |
| Dimension | l x b x h : 10600 x 2650 x 4000 mm |
| Weight | 19 Ton* |
| Optional features | Mines safety features Spin cage RC fixed cone splitter |
| Pull up force | 10000 kgf |
|---|---|
| Pull down force | 70000 kgf |
| Pull up speed | 33 m/min |
| Pull down Speed | 50 m/min |
| Angle Drilling | 45° to 90° manual locks in 5° increments |
| Jib Boom arm | Jib boom arm is provided for handling drill rods during Angle drilling |
| Rod Bin | 15 nos * 3 m = 45 m |
| Control panel | Centralized control panel is at the rear end of the equipment for a convenient view of the drill table provided with all necessary gauges, control system, and emergency switch. A locking arrangement is provided for the safety of operator. |
| Torque Speed | Torque : 3000 Nm Rotation Speed : 0 - 100 rpm |
| RC attachments | RC Head, Cyclone, RC hose, Swivel |
| Rod Clamp | Hydraulic-operated Rod clamp |
| Winches | Auxillary winch: 0.5 ton |
| Air Compressor | 500 cfm - 175 psi |
| Safety features | Guards on all rotating equipment Anti-slip grid mesh on all work platforms Hand rails on all work platforms Emergency stops in the control cabin and on all corners of the machine Heat guards on all exhaust manifolds and piping Whiplash Battery isolator Fire Extinguisher |
| Platform structure | Heavy I and C section welded steel structure covered with chequered plate |
