Product Description

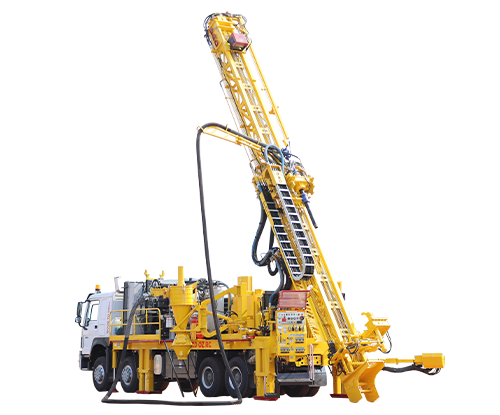

The PRD OZ RC Rig is a robust and efficient surface exploration sample recovery reverse circulation drill rig with a pull-up force of 25800 kg and a drilling capacity of 400 meters. It features a 260 hp deck engine, a heavy welded structured steel platform, and a tubular box type mast assembly powered by hydraulic cylinders. The rig utilizes a fabricated steel body with spur gear reduction and an oil bath lubrication gearbox, along with top and bottom swivels and a blow-down unit. A swing-out centralized control panel ensures convenient operation and a clear view of the drill table, while optional attachments such as progress monitoring, fuel monitoring, bit load sensing, GPS, and remote access capabilities add versatility. The rig can be mounted on trucks, crawlers, or skids, accommodating various operational requirements.
| Application | Surface exploration |
|---|---|
| Drilling Method | Reverse circulation |
| Flushing Medium | Air |
| Drilling Depth | RC : 400 m |
| Hole Diameter | RC : 140 mm (5 ½”") |
| Rod Handling Method | Option 1: PRD EZ rod handling Option 2 : PRD RED 180 Rod handling |
| Rotary Head Type | RG 62 |
| Rotary Head Travel | 8000 mm |
| Rod Break out method | SBS 6 – Swing in breakout (single) |
| Sampling System | Advanced cyclone with adjustable split static cone splitter |
| Engine - Model | Truck Engine with PTO / Deck engine 260 hp |
| Hydraulic system | Hydraulic oil cooler: 120 gpm Hydraulic tank capacity: 800 liters |
| Dimension | lxbxh: 12200 x 3200 x 4550 mm |
| Weight | 38 Ton* |
| Optional features | Mines safety features Spin cage RC fixed cone splitter |
| Pull up force | 25800 kgf (56890 lb.f) |
|---|---|
| Pull down force | 17700 kgf (39028 lb.f) |
| Pull up speed | 29 m/min |
| Pull down Speed | 66 m/min |
| Angle Drilling | 45° to 90° manual locks in 5° increments |
| Jib Boom arm | Jib boom arm is provided for handling drill rods during Angle drilling |
| Rod Bin | 32 nos * 6 m = 192 m |
| Control panel | Extended Swing out – Centralized control panel is at the rear end of the equipment for a convenient view of the drill table provided with all necessary gauges, control system, and emergency switch. A locking arrangement is provided for the safety of operator. |
| Torque Speed | Torque : 6545 Nm Speed : 0 - 100 rpm |
| RC attachments | RC head, RC hose Top swivel, Bottom entry air swivel Deflector box Blow up / down unit |
| Winches | Survey winch: 0.5 ton |
| Air Compressor | 1250 cfm – 350 / 500 psi |
| Safety features | Guards on all rotating equipment Anti-slip grid mesh on all work platforms Hand rails on all work platforms Emergency stops in the control cabin and on all corners of the machine Heat guards on all exhaust manifolds and piping Whiplash Battery isolator Fire Extinguisher |
| Platform structure | Heavy I and C section welded steel structure covered with chequered plate |
