Product Description

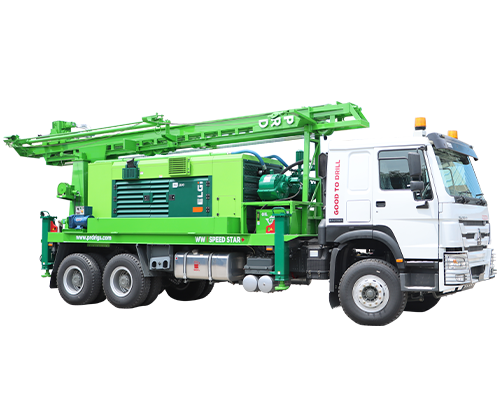

The PRD Speed Star is a versatile drilling rig known for its ability to handle various drilling methods such as DTH, and rotary drilling. With a drilling capacity of 363 meters depth @ 165 mm diameter, it is powered by a robust truck engine with PTO option or suitable 160hp deck engine. The rig features a heavy welded steel platform structure with a twin tubular box type mast assembly. The hydraulic system ensures smooth operation, with double-acting hydraulic cylinders and a 1:3 rope reeving system in the feed system. The rig is equipped with displacement piston pumps for feed, rotation, and winches, hydraulic cooling, auxiliary operations, and micro feed. It has a hydraulic tank capacity of 600 liters. The rig also offers convenient control with a swing-out centralized control panel, equipped with necessary gauges, control systems, and an emergency switch. Additional features include night lights, tool box, hammer stand and compressor fuel tank. The PRD Speed Star provides mounting options of truck, crawler, and skid for added flexibility.

Application Domestic Water Wells
Drilling Method DTH / Rotary Drilling
Flushing Medium Air / Water
Drilling Depth 363 meters
Hole Diameter 165 - 305 mm (6 ½” - 12")
Rod Handling Method Option 1 - Auto rod handler
Option 2 - RED 180
Option 3 - EZ Rod handling
Option 4 - Single rod chnager
Rotary Head Type Top drive rotary head
Rotary Head Travel 7050 mm
Rod Break out method Hydraulic operated breakout system
Engine - Model Suitable Deck Engine 180 hp
Hydraulic system Hydraulic Oil Cooler: 70 gpm
Hydraulic Tank Capacity: 600 litres
Mounting Truck / Crawler / Skid
Optional features Hammer opener: Hydraulic operated hammer device Rod Carousel: 4 Carousel rod changer GPS and fuel monitoring system
Pull up force 10000 kgf
Pull down force 7300 kgf
Pull up speed 39 m/min
Pull down Speed 58 m/min
Mast overall length 9700 mm
Rod handling length 5 m
Control panel Swing out centralized control panel is at rear end of the equipment for convenient view of drill table provided with all necessary gauges, control system and emergency switch. Locking arrangement is provided for the safety of control panel.
Torque Speed Torque: 4020 Nm
Speed: 0 - 100 rpm
Centraliser Opening 13” (330 mm)
Air Compressor ELGI / Atlas Copco / Doosan
Compressor capacity
1100 cfm - 300 psi (21 bar)
1200 cfm - 330 psi (24 bar)
Mud Pump Hydraulic operated PRD 150 Mud Pump (6" x 6")
Truck Option SINOTRUK Howo 6x4 / 6x6
Ashok Leyland 2518 6x4
MAN 6x4 / 6x6
Safety features Walkways and Handrails
Rod fall protection system
Platform structure Heavy I and C section welded steel structure
Covered with 5mm chequered plate
