PRD 450

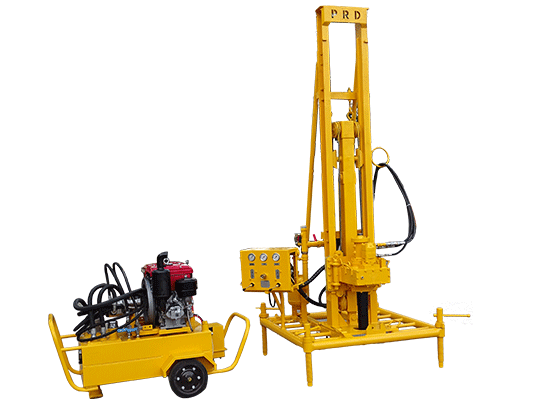

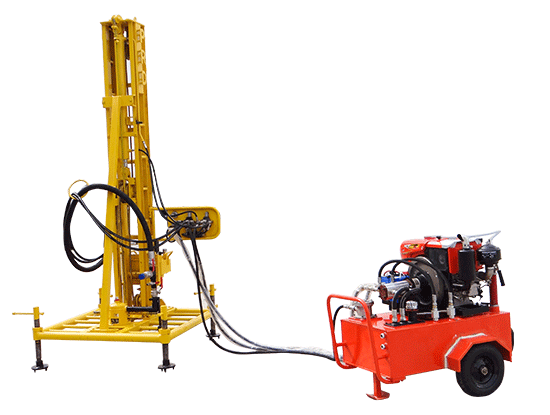

PRD 450 a portable bore hole drilling rig with a pull up force of 3000 kg capable of drill depth up to 150 m of 4” diameter with capacity to drill 4 ” to 6”.DTH and Rotary method for water well application.

REQUEST A QUOTEADD TO COMPARE
Category:

Reliable design

Minimal Downtime

OEM spare parts

Extensive service network

DIAMETER 4”-6" dia bore holes
DEPTH 150 mtr @ 4" bore hole
APPLICATION Water Well Drilling Rig
FORMATION Soft / Hard
DRILLING METHOD DTH/ Rotary
PRIME MOVER Power pack for hydraulic operated rig Compressor air for Pneumatic operated rig
MAST Rod handling : 1.5 mtr
ROTARY HEAD MAX.TORQUE 1436 Nm
ROTARY HEAD SPEED 0-25 rpm
PULL UP FORCE 3000 kg / 6613 lbs
PULL DOWN FORCE 1829 kg (4032 lbs)
PULL UP SPEED 11.7 mtr / min (38 ft / min)
PULL DOWN SPEED 20 mtr /min (65 ft/min)
JACKS Manual screw jack
COMPRESSOR 400 cfm/150 psi trolley
MUD PUMP CENTRIFUGAL MUD PUMP-separate skid
TRUCK/MOUNTING Stand base

Additional information

Dimensions 10 × 20 × 30 in
Method

,

Dia
