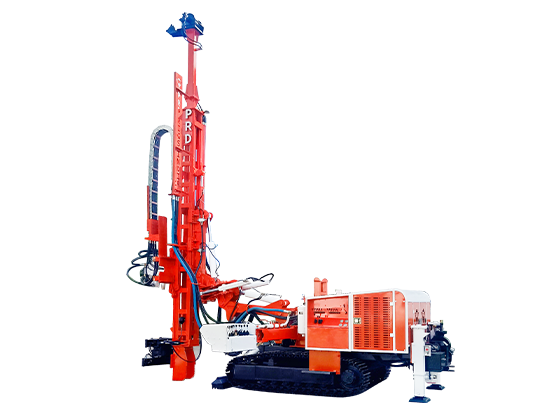

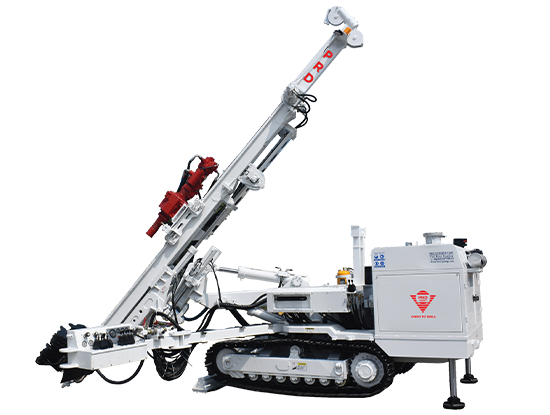

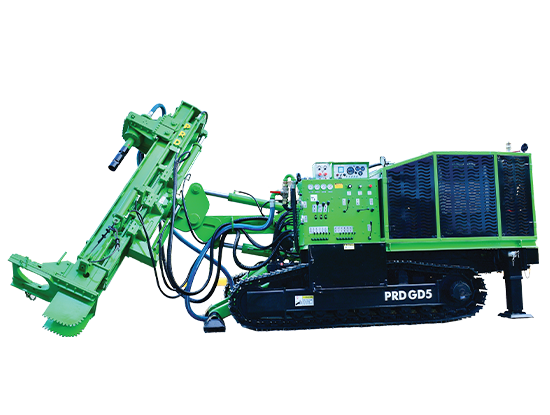

PRD GD5

The PRD GD-5 is a geotechnical drilling rig with a modular mast. It is so small and easy-to-use that it can work in narrow spaces such as tunnels or inside buildings.

Category:
APPLICATION Micro piles, anchors,
tunnelling, auger, fore piling,
soil nailing, soil investigation
DRILLING METHOD DTH / Rotary
ROTARY HEAD TORQUE 4100 - 7200 Nm
ROTARY HEAD SPEED 110 - 55 rpm
PULL UP FORCE 5000 kgf
PULL DOWN FORCE 4100 kgf
MAIN WINCH 1 ton with 20 m (10 mm rope)
WATER PUMP Triplex Water Pump
Displacement: 80 lpm
Max Pressure: 1000 psi
MOUNTING OPTION Crawler
OPTIONAL ATTACHMENTS Depth indicator on control panel
Remote tramming
GPS monitoring system
